About This

General Model: (1)Voltage: DC12V. (2)Power: (Standby Mode)0.6W, (20 Strips Dim Brightness)8W, (20 Strips Normal Brightness)288W, (36 Strips Normal Brightness)520W. (3)Working Temperature: -10℃-45℃.

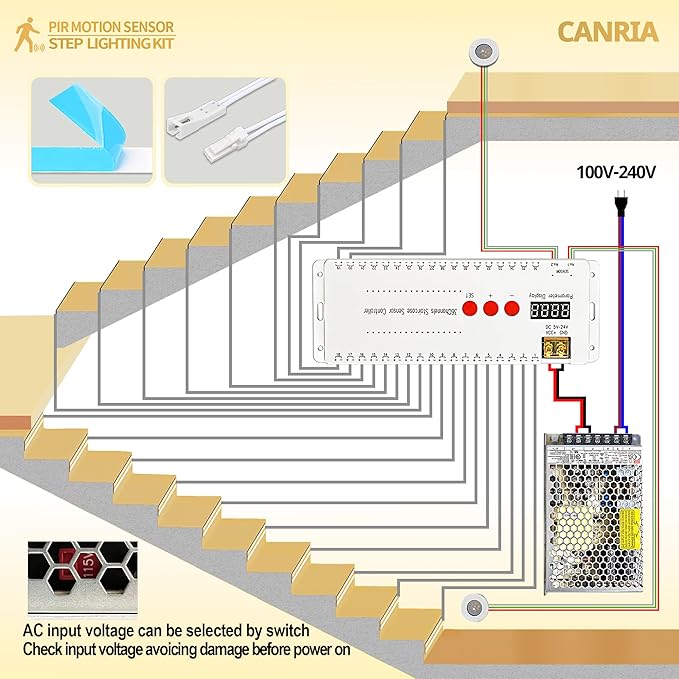

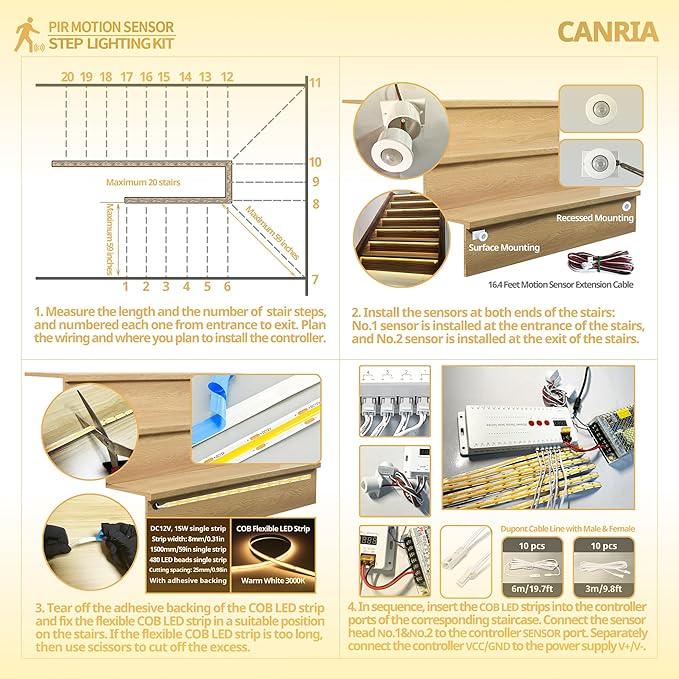

This product is used for the stair tread monochromatic light strip. There are 2 induction modules that can be connected to 2 sensors, which are installed at the entrance and exit of the stairs respectively. When people walk though stairs, the LED strips gradually lights up ahead.

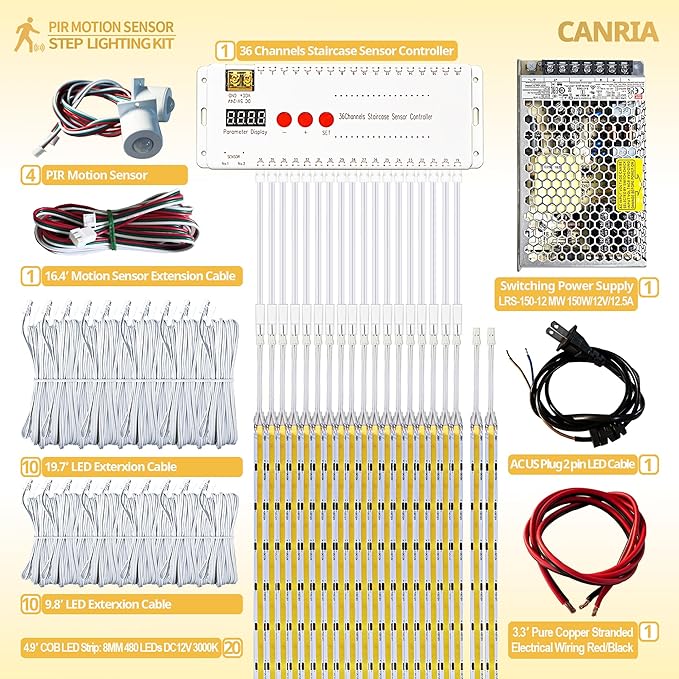

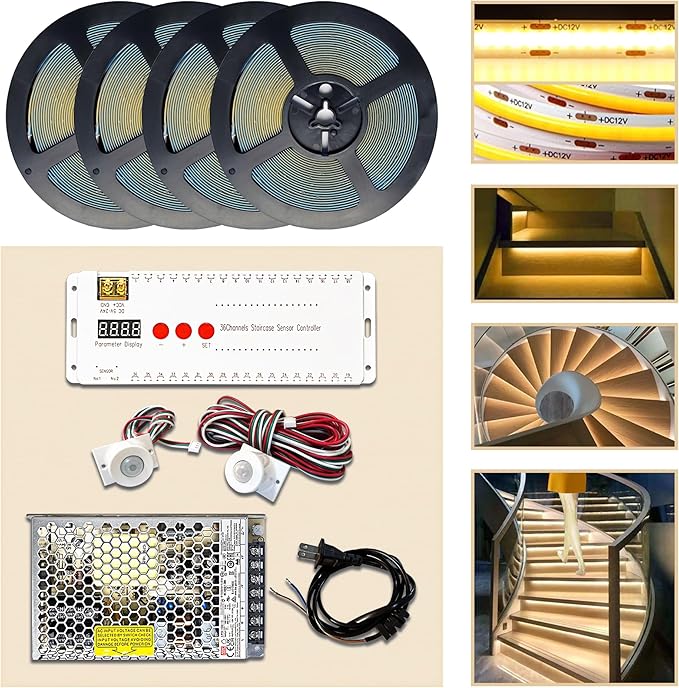

Products Include: (1)36-channel staircase sensor LED controller. (2)PIR-MX20 infrared human induction sensors (4 pack). The sensor triggers infrared radiation emitted by human body temperature. (3)16.4ft/5m motion sensor extension cable. Connecting sensor No.2 and controller. (4)4.9ft/1.5m COB-8MM-480LEDs light strips (20 pack). You can trim the length of the LED strip to fit your staircase.
(5)19.7ft/6m (10 pack) and 9.8ft/3m (10 pack) LED light strip extension cable. Connecting COB LED strips and controller. (6)LRS-150-12 switching power supply. AC100V-240V. Please notice the input voltage range(110V/220V) on the red paddle. (7)Power extension cable 3.3ft/1m. Connecting switching power supply and controller. Need to distinguish poles of connection. (8)Power extension cable with plug(2pin). Connecting switching power supply and socket. No need to distinguish poles of connection.

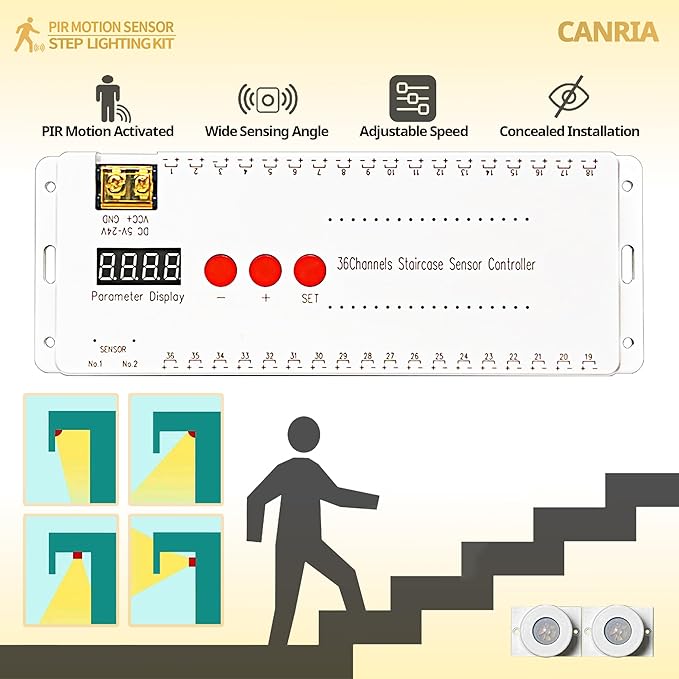

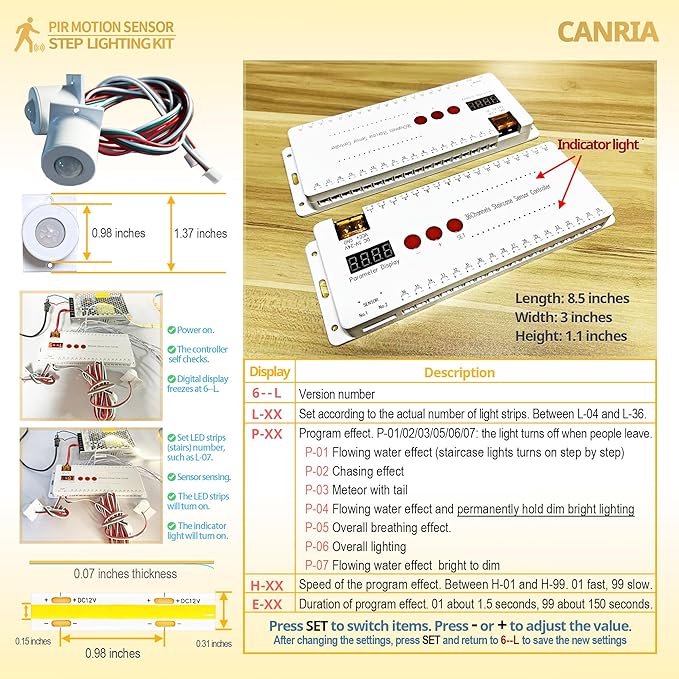

Nixie tube display and key function list: (1)In the initial state of booting, the digital tube displays: 6—L. (2)Press SET to toggle the item. Pressing - or + to adjust the value. (3)L-XX: 04-36, number of light strips(stair step).
(4)P-XX: 01-07, program effect. P-01 normal brightness, flowing water effect, staircase lights turns on step by step. P-02 normal brightness, chasing effect. P-03 normal brightness, meteor with tail. P-04 after normal brightness flowing water effect ends, permanently hold dim bright lighting. P-05 overall breathing effect. P-06 normal brightness overall lighting. P-07 flowing water effect normal brightness to dim.
(5)H-XX: 01-99, program effect speed. 01 is the fastest and 99 is the slowest. (6)E-XX: 01-99, delay time of stair lights. 99 is the longest, about 150 seconds. (7)Press SET to return to 6--L, save the new settings. The controller will work according to the newly set parameters next time.
36 channels staircase sensor controller is multi-function LED controller. For the convenience of installation and use, so we only integrate some basic functions and program effects.
